Blue Lasers & Hybrid Processing

Efficiently process reflective metals.

Our Suppliers:

The new frontier

Cutting and welding highly reflective materials like copper and gold with more precision is now possible with Laserline’s blue diode lasers. Combining two proven laser applications (blue and infrared lasers) has allowed for the processing of thicker materials. Now, even more applications are possible, with less energy consumption and material waste.

Better absorption

Reflective metals have long proved a challenge to process by laser, whether that’s cutting or welding. This is because the laser light is reflected away and not absorbed by the metal. But copper and gold absorb blue light 7– 20 times better than any laser in the infrared range. The resulting weld seams are smooth. Blue lasers can even process very thin foils and sheets.

A quantum leap for technology

Thanks to its high thermal and electrical conductivity, copper is a popular material used in today’s technology. It’s present in many different forms in batteries and electric cars, for example. Each component could be made of different parts that need to be connected. And it’s essential that the connections—welds—don’t cause resistance in the flow of the signal. Some applications of blue laser welding include the production of wind turbines, electric cars and jewellery.

The team at Raymax have offered us exceptional service and technical back up. We couldn’t ask for better support from a supplier.

Ben Sonsee General Manager CGC Engineering

Controlled process & result

Infrared lasers can also weld copper but require high output power, which increases the risk of mistakes and spatters. The rejection of compromised materials or parts can be more costly to manufacturers.

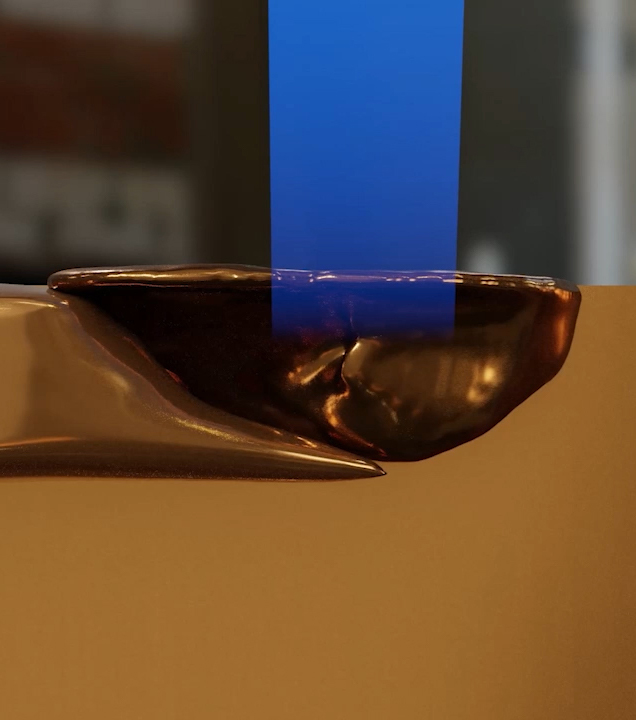

Because blue lasers are better absorbed by copper, the process is more controlled. The resulting weld seams are created without spatters or pore formation.

The best of both worlds

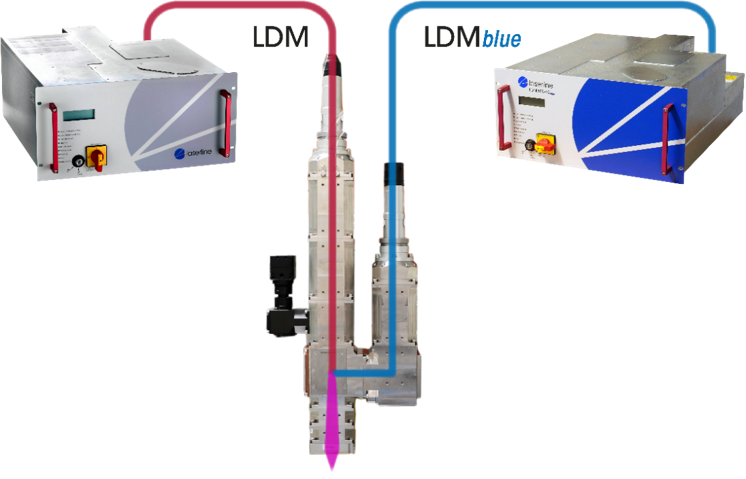

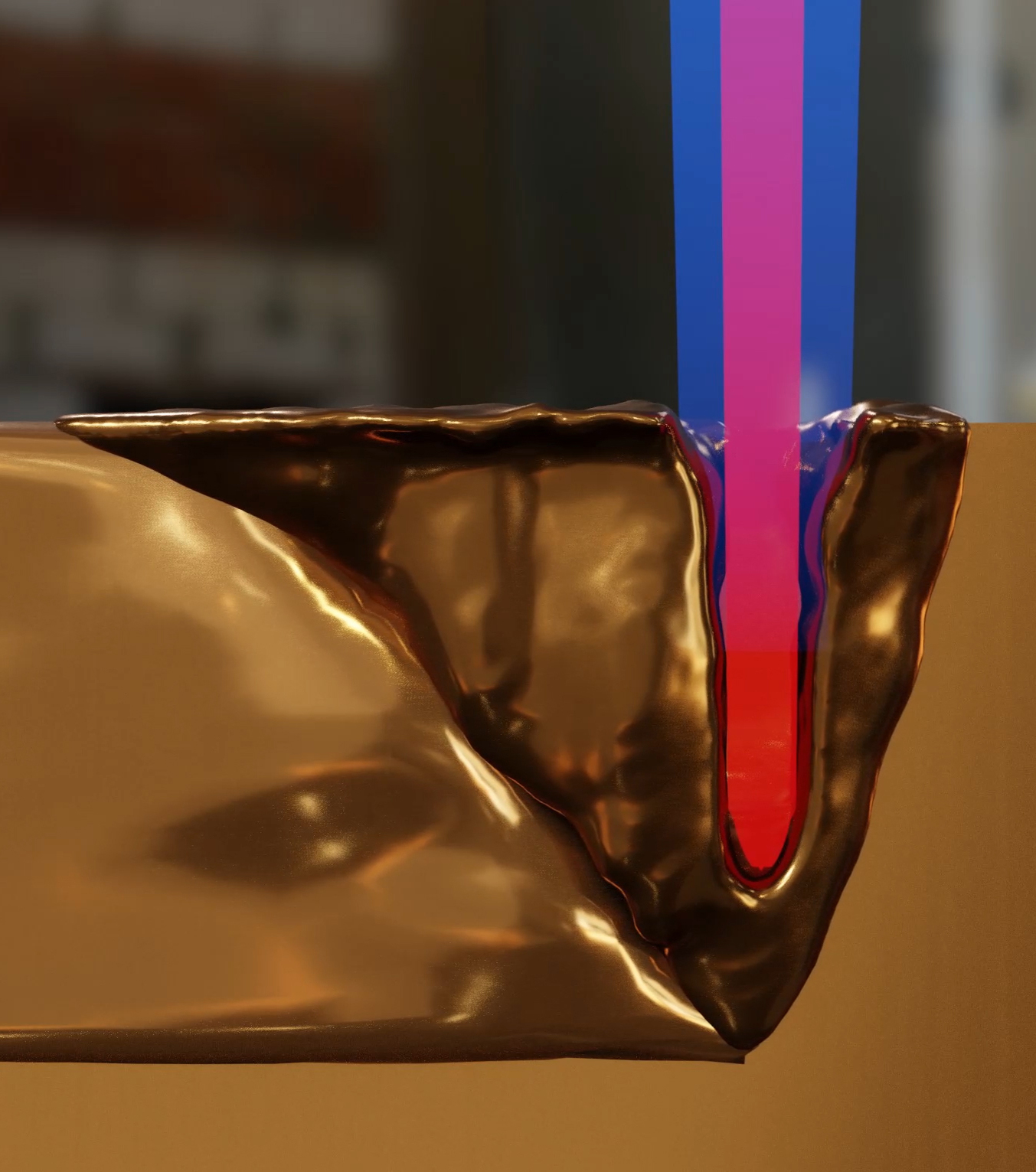

When joining thicker materials, however, blue light is less efficient and more costly. So how to solve this dilemma? Laserline developed a hybrid concept for deeper welding up to 3mm. The hybrid laser technology involves a blue light overlaid with an infrared laser. The infrared laser does the actual welding, while the blue light provides a calm molten pool for a more controlled outcome.

Advance your manufacturing

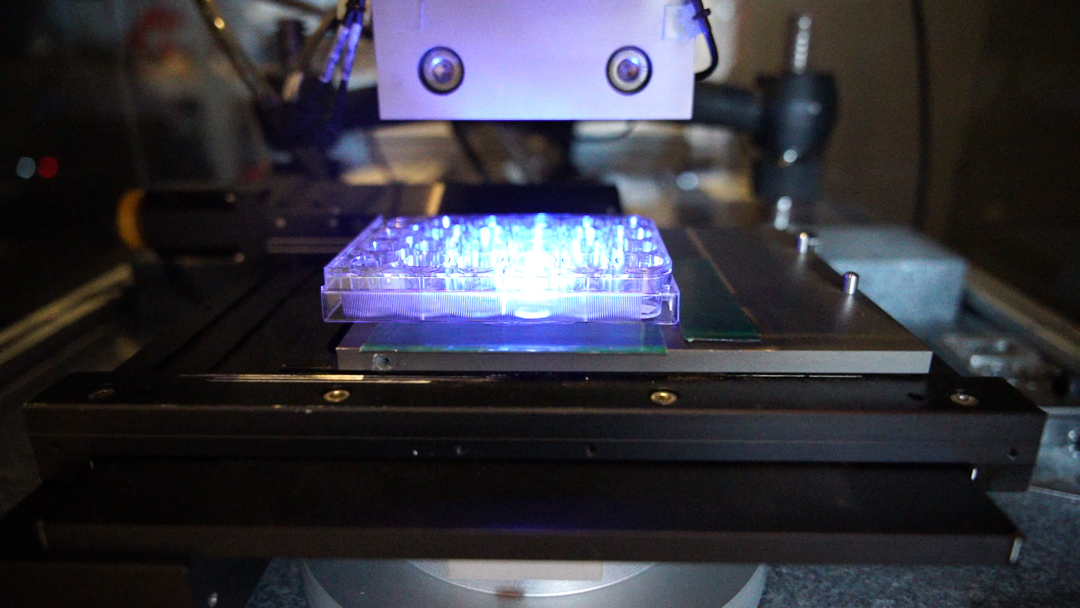

Got a new idea you’d like to try, and think blue laser or hybrid technology will help you get there? Our lab and expert knowledge can help you get answers faster. We can assist you with laser evaluation services and process development.

Clients come to us because they know we won’t let them walk away with a solution that doesn’t work. We balance business priorities with innovation to get you the best results.

Why Raymax?

We make laser light work for you. We’ve spent over 30 years demonstrating what’s possible with lasers. In doing so, we’ve helped modernise Australian and New Zealand industries. You’ll be working with a team of physicists and factory-trained engineers—leaders in the supply of laser solutions and photonics equipment. We’re experts in material interaction research. Wherever possible, you’ll be introduced to new technology that can improve operation in ways you might not have imagined possible.
